S.G. Pearlitic

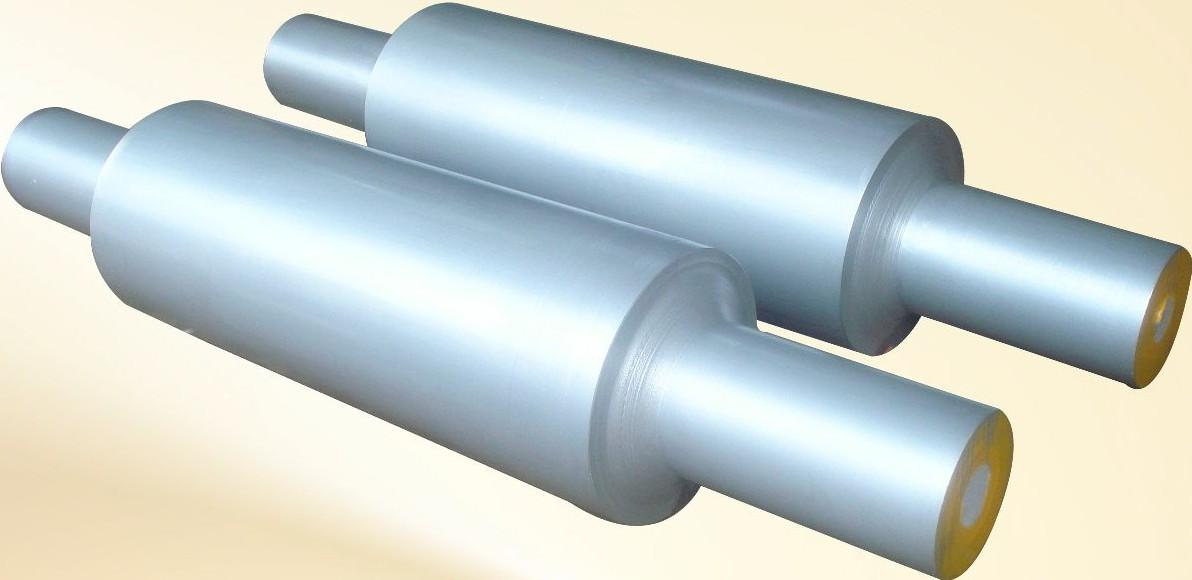

Nodular pearlitic rolls are widely used for hot rolling applications in different type of Roughing, Intermediate & finishing stands. The material consists of nodular graphite and carbides in pearlitic matrix.

Depending on the primary requirements (Whether thermoI shocks/cracks, crack penetrations or wear resistance etc.) there are variety of Cr, Ni, Mo alloyed grades used considering the rolling mill operational conditions and groove / caliber design. The carbide is relatively higher in alloyed compared with standard grades.

Chemical Composition

Hardness C Mn Si P S Ni Cr Mo
50-55 3.00/3.50 0.40/0.70 1.50/2.20 0.050 MAX 0.020 MAX 1.30/1.80 0.50 MAX 0.40 MAX
55-60 3.20/3.50 0.50/0.70 1.50/2.00 0.050 MAX 0.020 MAX 1.60/2.20 0.60 MAX 0.50 MAX
60-65 3.30/3.50 0.60/0.80 1.20/1.80 0.050 MAX 0.020 MAX 2.00/2.50 0.80 MAX 0.70 MAX
